18 Winter 2018 European Energy Innovation

COMMUNICATION

Q-Air
Innovative Six-Layer Glass
Facade System

It is a rare thing in the construction sector when something truly innovative comes along, but
the development of Q-Air marks the arrival of a real game-changer and something that sets the
standard for energy efficiency and helps move the industry closer to a cost-effective and human-
friendly, nearly zero-energy building.

Glass facade for sustainable Perfect solution for nZEB, no need where thermal transmittance is only
architecture and living – Horizon for external sun shades Ucw ≥ 0,30 W/m2K.
2020 Q-Air is a unique, multi-chamber
Q-Air represents one of the leading insulating glass facade system, Constant indoor temperature - no
European innovations, which is requiring no exterior sun shadings. cold draught, no excessive solar
underlined by being selected Up to six layers of glass create an heat gain
and supported by Horizon 2020 innovative insulating core, which is Q-Air provides constant interior
programme, a Fast Track to available in transparent, translucent thermal comfort by keeping the
Innovation Pilot scheme. The Q-Air and opaque options to allow Q-Air temperature at a stable level at
project is being implemented by five to deliver unparalleled energy all times, personal well-being and
international consortium partners savings. Q-Air is a perfect solution productivity of occupants are
Trimo d.o.o. and ZAG – Slovenian for nearly zero-energy buildings improved. Using Q-Air, seasonal
national building and civil engineering (nZEB) delivering outstanding thermal climate peaks for highly glazed
institute from Slovenia, Kohlbecker insulation of complete curtain buildings are perfectly managed:
Gesamtplan from Germany, Cantori wall system. Specifically, the fully
s.r.l. from Italy and Skandinaviska transparent glazed façade offers an • Winter: Due to high thermal
Glassystem from Sweden. extreme level of thermal insulation, insulation level (low U value),

25Energy need for HEATING (kWh/m2a) 400 372 134
20 Energy need for COOLING (kWh/m2a) 350

14.6 300
15
10 250 222
200 195

150

5 2.8 100 65 75
2.0 0.1 0.0 50

0.0 Q-AIR 0 Q-AIR
0 Triple glazing

Triple glazing

n Oslo n Munich n Madrid n Oslo n Munich n Madrid

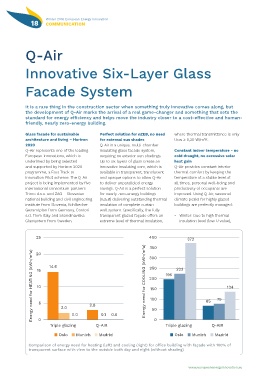

Comparison of energy need for heating (left) and cooling (right) for office building with façade with 100% of
transparent surface with view to the outside both day and night (without shading)
